In land development, erosion control is important. Aside from preventing water pollution due to runoff and the potential habitat loss of nearby ecosystems, erosion control also staves off soil loss and consequently, property loss. In urban areas, erosion control techniques are primarily concerned with storm water runoff management, but soil loss due to winds and sloped properties must be considered as well. Multiple factors can cause erosion, and every situation calls for specific solutions based on the site and the severity of the problem.



Controlling erosion is important not just for preserving the construction site and protecting the new structure but also for minimizing the environmental impact that the project has on the surrounding area. Erosion control measures can add significantly to the project cost, and manufacturers are continually developing innovative products to minimize cost as well as environmental impact.

small Compaction tools

32" Trench Roller

Engine: Kubota D 10005

Fuel: Diesel

Fuel Tank: 6.3 Gallons

Horsepower: 19.4

Height: 50.2"

Width: 33.5"

Length: 74.7"

Operating Weight: 3,516 lbs



11" Rammer

Engine: Honda GXR 120

Fuel: Gasoline

Fuel Tank: 0.8 Gallons

Height: 40.6"

Width: 11"

Length: 28.7"

Area Coverage Max: 2,970.9 sq.ft

Impact Force: 3,372 lbs

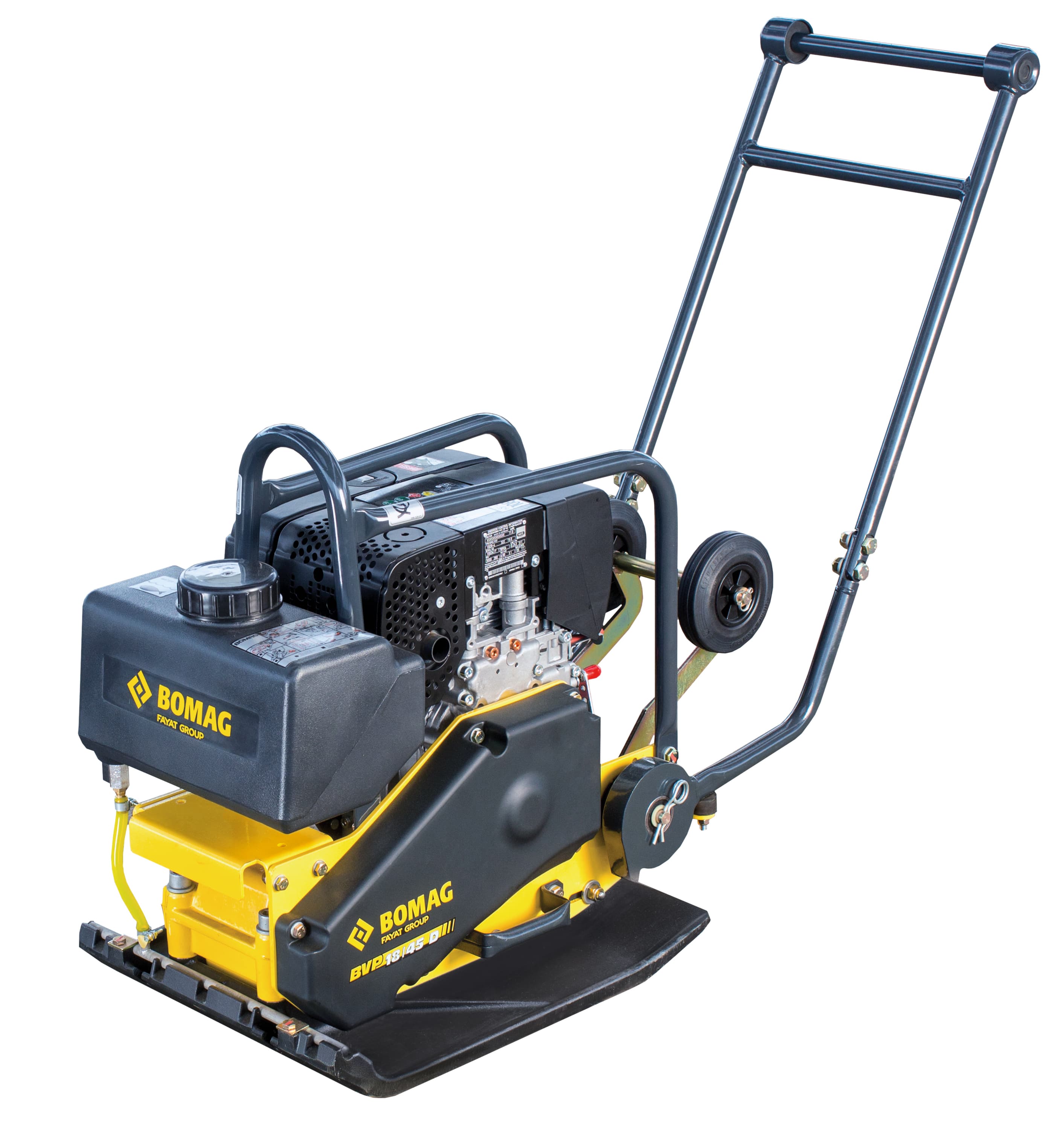

17.7" Plate Tamp

Engine: Honda GX 160

Fuel: Gasoline

Fuel Tank: 0.8 Gallons

Water Tank: 1.8 Gallons

Height: 36"

Width: 17.7"

Length: 43.9"

Working Speed, Max: 82 ft/min

Operating Weight: 201 lbs



Ride-On Compactors

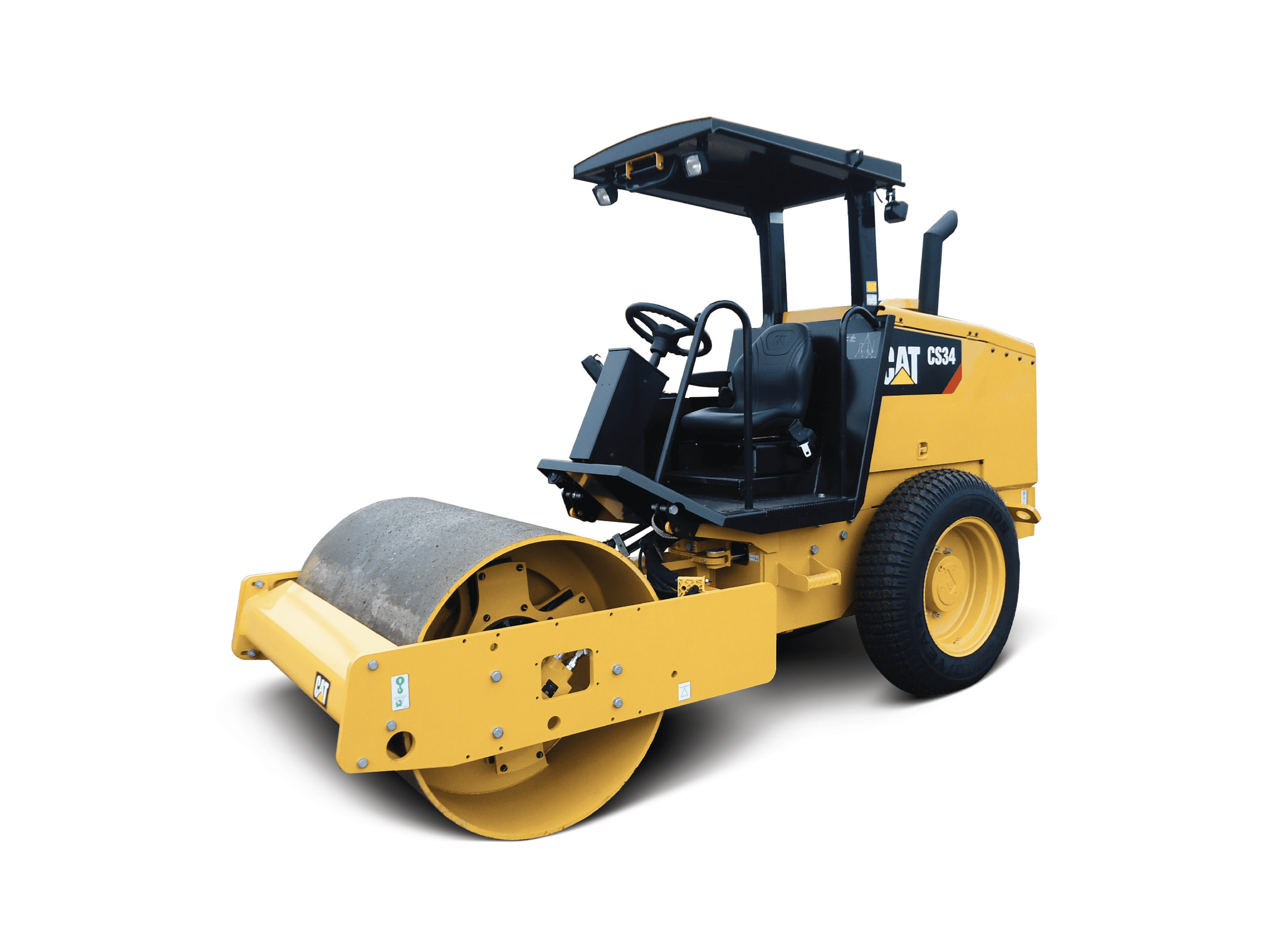

50" Smooth Drum Roller

CS-323 or CS-34

Engine: Cat C3.4B

Horsepower: 74

Height: 8.2 ft

Width: 4.6 ft

Length: 13.8 ft

Fuel Tank: 30 Gallons

Ground Clearance: 13.6"

Operating Weight: 9,799 lbs



50" Padfoot Roller

CP-323 or CP-34

Engine: Cat C3.4B

Horsepower: 74

Height: 8.2 ft

Width: 4.5 ft

Length: 13.7 ft

Fuel Tank: 30 Gallons

Ground Clearance: 13.6"

Operating Weight: 11,000 lbs

66" Smooth Drum Roller

CS-44

Engine: Cat C3.4B

Horsepower: 100.6

Height: 9.35 ft

Width: 5.91 ft

Length: 16.7 ft

Fuel Tank: 40 Gallons

Ground Clearance: 16.2"

Operating Weight: 15,895 lbs



66" Padfoot Roller

CP-44

Engine: Cat C3.4B

Horsepower: 100.6

Height: 9.35 ft

Width: 5.91 ft

Length: 16.7 ft

Fuel Tank: 40 Gallons

Ground Clearance: 16.1"

Operating Weight: 16,471 lbs

To get more information on any of the compactors or if you are ready to rent, fill out the form and a Yancey Representative will be in contact with you shortly.
