Compact Crawler Booms
Now you can go more places around the job site thanks to the low weight and non-marking tracks on the Compact Crawler boom. These Compact Crawler boom lift features a tracked wheel carriage that climbs steps and a narrow chassis for access through doorways, gates and yards. Jobs that used to require skilled positioning are much easier to work now.
TL54AJ
Platform Height: 54'
Working Height: 60'
Horizontal Outreach: 27' 11"
Platform Size: 58" x 29"
Platform Capacity: 441 lbs
Stowed Height: 6' 6"
Weight: 5;401 lbs
Benefits
• Automatic, Self-leveling Outriggers
• Setup on slopes up to 21%
• Dual power for operating indoor and outdoor
• Lightweight so it can be set up on sensitive flooring or landscape
• Ease of Transport but fitting on a trailer or tilt-back truck
• Independently operable jib for maximum flexibility

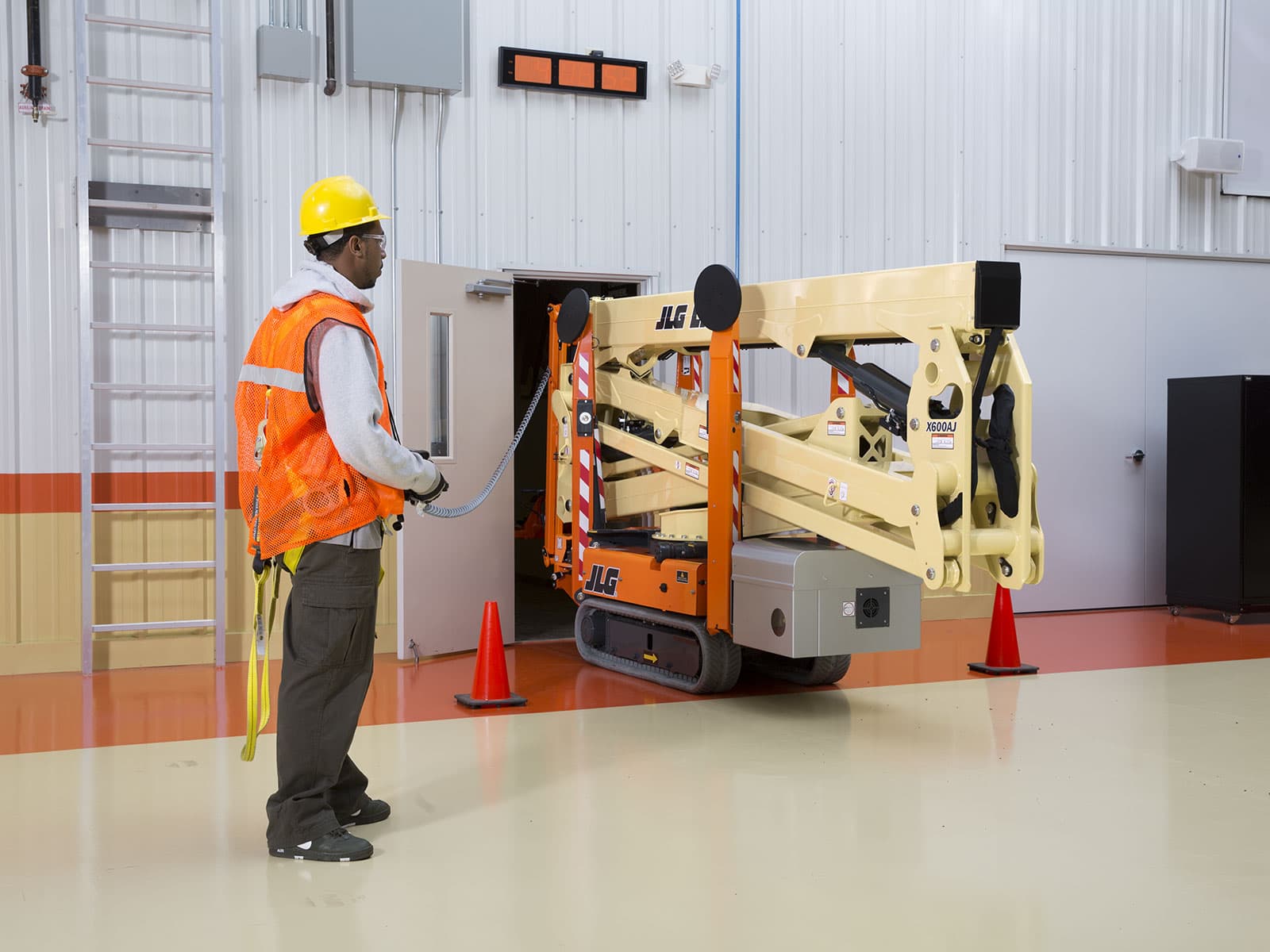

X600AJ
Platform Height: 59' 3"
Working Height: 66'
Horizontal Outreach: 30'
Platform Size: 58" x 30"
Platform Capacity: 500 lbs
Stowed Height: 6' 6"
Weight: 6,571 lbs
Benefits
• One-Touch Outrigger Leveling
• Platform Caster Wheels
• Additional Operator Protection
• Lightweight so it can be set up on sensitive flooring or landscape
• Zero-turn radius with counter rotation
• Ease of Transport but fitting on a trailer or tilt-back truck
